Features:
* Can integrate HD visible light and uncooled infrared thermal imagers to meet monitoring needs in day and night, all-weather environments;
* Rotation speed can reach over 100°/s, with rapid start and stop, and can track fast-moving targets;
* Azimuth rotation range 0°～360°, pitch rotation range -90°～+90°
* Supports area intrusion alarm, boundary crossing alarm, motion detection, target recognition, automatic tracking, and radar linkage.
Technical Parameters:
Thermal Camera Options
| Image Sensor |
Uncooled Vox |
| Resolution |
640X512 pixels |
| Pixel Pitch |
12μm |
| Lens |
20mm |
75 mm |
| Focus |
Motorized Autofocus |
| Spectral Range |
LWIR (8-14μm) |
| Thermal Sensitivity |
40mK |
| Image Display Modes |
White Hot, other color palettes available |
Visible Camera/LRF Options
| Lens |
4.7mm～141mm |
| Resolution |
1920×1080 |
| Sensor |
Ultra-low illumination starlight CMOS |
| Video Format |
H.264/H.265 |
| Laser range finder |
Wavelength: 905nm ± 5nm
Range: 1km/3km/5km
|
Other Specification
Pan/Tilt Mechanical
| Pan Angle |
Endless 360° |
| Tilt Angle |
-90°～+90° |
| Rotate Speed |
≥100°/s |
| Presets |
≥ 255 |
| Accuracy |
≤0.01° |
| Working Temperature |
-40℃～60℃ |
| Weight |
≤6kg |
| Dimensions |
≤φ200mm×300mm |
Applications:

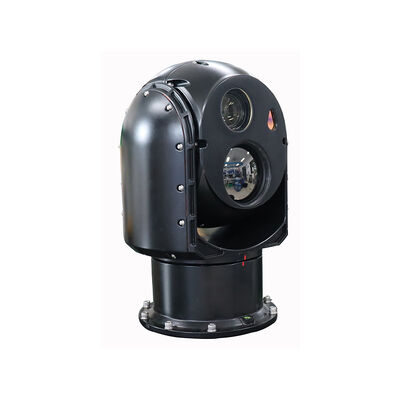

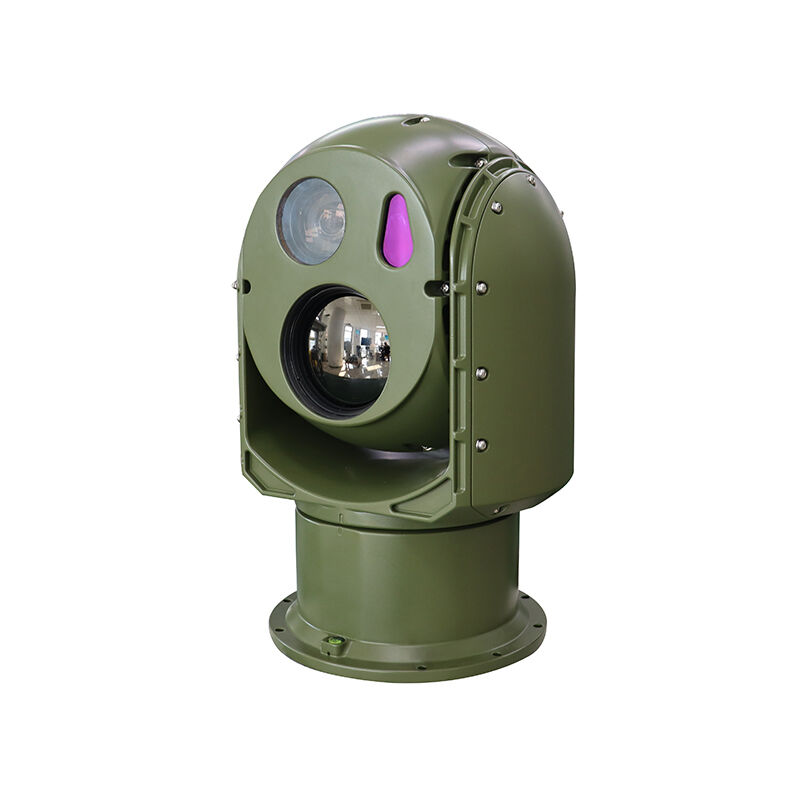

The Hope-Wish Long Range Thermal Camera model HP- is a cutting-edge Thermal Imaging Camera designed to deliver exceptional performance in a variety of application occasions and scenarios. Originating from China, this advanced device boasts a detection range of 5-10KM, making it ideal for long-distance monitoring and surveillance tasks. With a high-resolution sensor of 1920x1080, the Long Range Thermal CameraThermal Imaging Camera captures clear and precise thermal images, even in complete darkness or adverse weather conditions.
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
